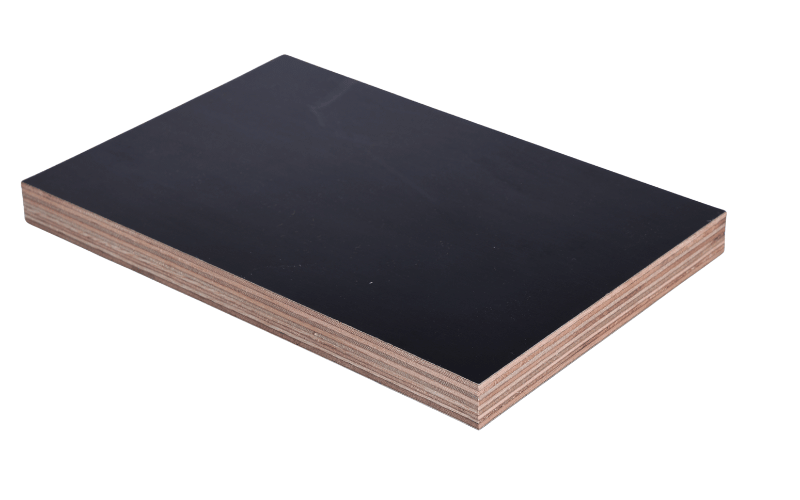

F17 Formply

F17 Formply

Jewoo-ply F17 Formply has been independently tested and rated for structural use. Constructed from mixed-species veneers with a hardwood face and phenolic overlay, F17 form ply is highly durable and ideal for most formwork applications including walls, suspended decks, columns, and precast. Manufactured from superior full hardwood veneers bonded together with a specially designed super E0 waterproof adhesive.

The Jewoo-ply F17 Formply certified by Benchmark and CertMark is specially tailored for the climate of Australia and New Zealand. It is professional and dedicated to creating the best F17 formply.

Send email to us

F17 Formply Primary Specifications

Item Property Value
Modulus of Elasticity MOE 14500
Bending Strength f’b 47
Shear f’s 6.2
Property Value
Sheet size 1200x1800mm; 1200x2400mm
Thickness 12mm; 17mm; 25mm
Core material Full hardwood Eucalyptus
Glue Bond A Bond Phenolic glue, 72 hours boiling
Film Black Dynea film
Moisture Content 8% – 12%
Density 680 kg/m³ (approximately)



F17 Formply Advantage

  1. Jewoo-plyFormply F17 is made from high-quality hardwood veneers that are bonded with waterproof glue, providing durability and resistance to wear and tear.
  2. The formwork plywood has a thickness of 17mm, making it sturdy and able to support heavy loads.
  3. The plywood is treated with special chemicals that make it resistant to moisture, rot, and termites, ensuring a long lifespan.
  4. Jewoo-plyFormply F17 features a smooth surface that facilitates the easy release of formwork, thereby reducing the need for additional release agents and saving time and money.
  5. The formwork plywood has a high strength-to-weight ratio, making it easy to handle and transport.

F17 Formply Packing & Loading

Stress Grade Description Weight (kg) Packing Unit
F17 1200x1800x12mm 17.5 56
F17 1200x1800x17mm 25 40
F17 1200x1800x25mm 36.5 27
F17 1200x2400x12mm 23.5 75
F17 1200x2400x17mm 33.5 54
F17 1200x2400x25mm 49 37

Application

  1. Concrete Formwork
    One of the primary uses of F17 Formply is in concrete formwork. Its high strength and smooth surface make it ideal for casting concrete slabs, columns, and beams.
  2. Structural Applications
    F17 Formply is commonly used in temporary and permanent structural work due to its high load-bearing capacity. It is perfect for bridges, tunnels, scaffolding platforms, and heavy-duty flooring where strength is crucial.
  3. Industrial & Commercial Construction
    Due to its water-resistant properties, F17 Formply is used in warehouse flooring, hoardings, and retaining walls.

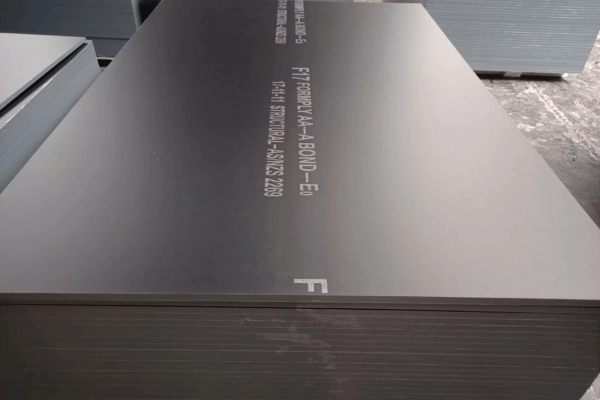

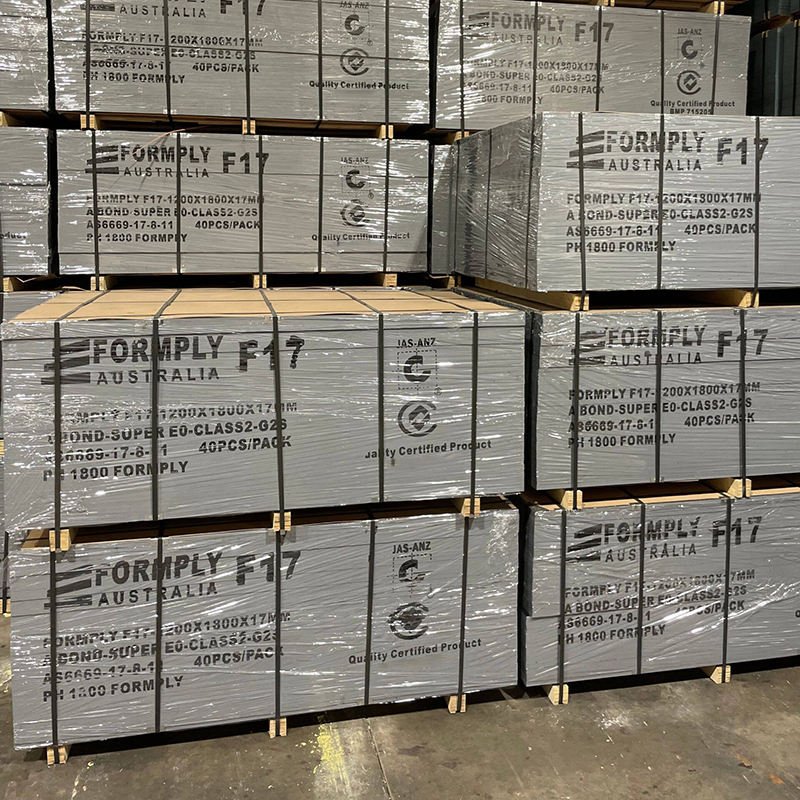

Package

Package

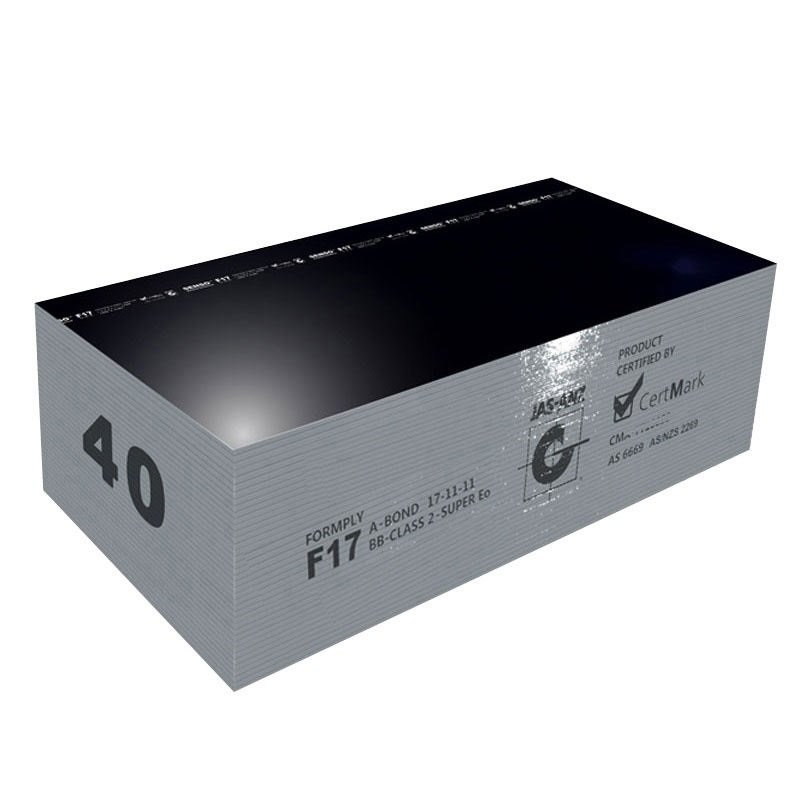

Package2

F17 Formply Certified By
21222

F17 Formply Certified By

CertMark

Frequently Asked Questions

Welcome to our FAQ section. Here, we provide clear and concise answers to the most frequently asked questions about our products, services, and policies. From payment terms to delivery timelines and quality assurance, this section is designed to address your inquiries with professionalism and precision.

Q1: Are you trade company or manufacturer?

We are professional manufacturer, we have the competitive price and sufficient supply. Our factory can produce 100000 boards per month.

Q2: What are your terms of payment?

TT or 100% L/C at sight. We’ll show you pictures of the product and package before you pay the balance.

Q3: What are your delivery terms?

FOB, CFR, CIF, EXW.

Q4: What about delivery time?

Generally speaking, it takes 7-10 days after receiving your advance payment. The specific delivery time depends on the item and quantity of your order.

Q5: Can you produce according to the sample?

Yes, we can produce according to your samples or technical drawings.

Q6: What is your sample policy?

We can provide samples for free but the customer needs to pay the freight only.

Q7: Will you inspect all the goods before shipment?

Yes, our QC department will do 100% of the testing before delivery.

Q8: How could you guarantee your products?

Each piece of products is manufactured by our owned certified workshops, inspected by piece by piece according to national QA/OC standard. We also could issue the warranty to customer to guarantee the quality. And all our products have CMI, BSI and FSC certificates.
